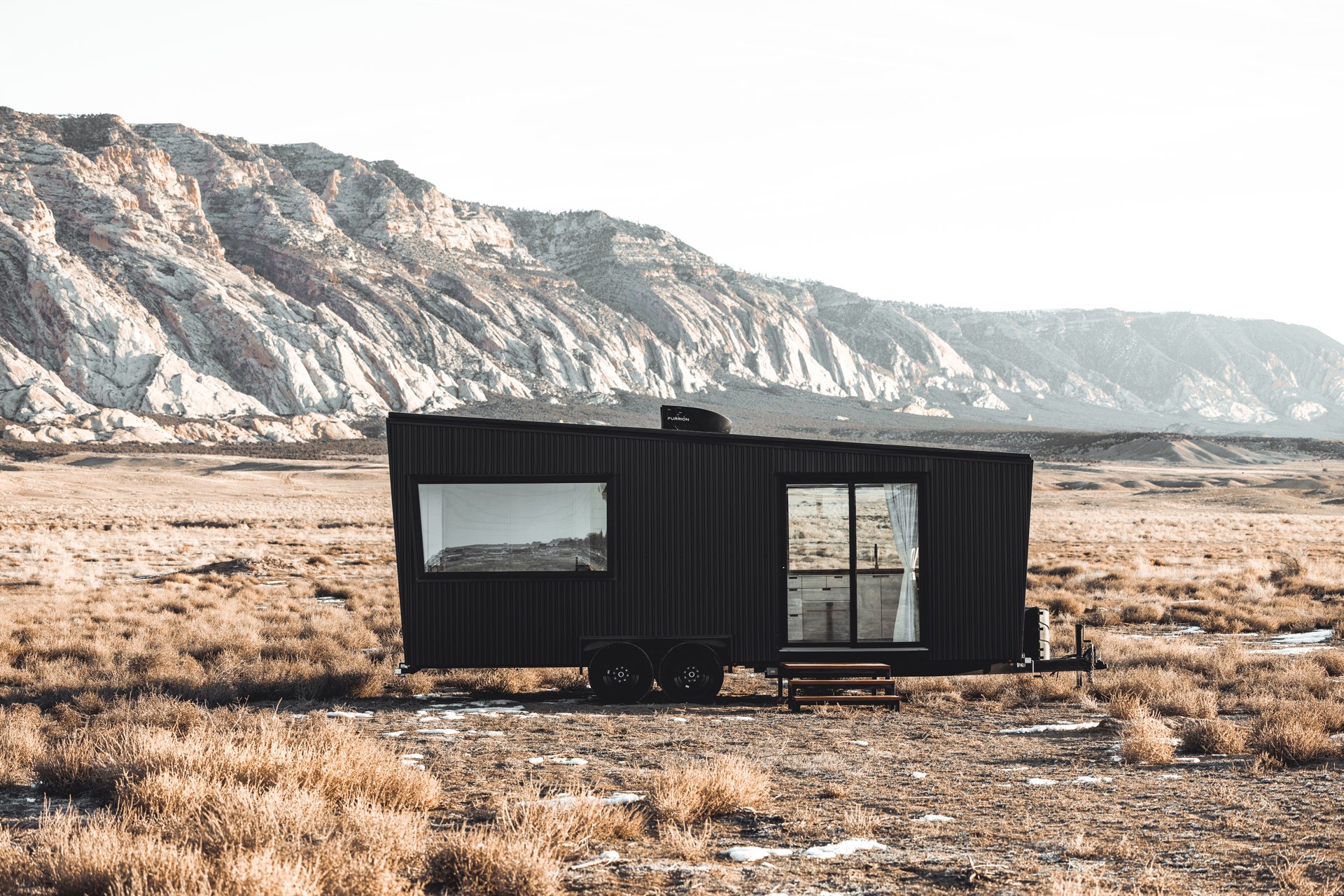

This design is named after 4° angles on the 8′ wide windows. So, naturally we started calling it “Quatro.” The living/kitchen area is ideal for dining, working or relaxing, plus it easily converts to a twin sleeper for an overnight guest. Down the hall is a split bathroom with a private shower/toilet room and an adjacent vanity. The pivoting bathroom door also latches across the hallway to connect the spaces and offer full privacy from the living/kitchen. The ceiling height continues to rise to over 9′ as you enter the private bedroom. Emphasized by the recessed cove lighting, this space feels surprisingly cavernous. A queen Murphy bed can easily fold up or down for added functionality.

Skip The Wait. 1 AVAILABLE NOW!


Quatro includes all features and specifications listed below, excluding registration, delivery and tax (where applicable). View the FAQs for information about financing and purchase requirements.


©Land Ark RV - Quatro Floor Plan

A  6′ x 7′ Sliding Entry Door
B  Seating Bench w/ Table
C  Kitchen w/ Elec Stovetop

D  Refrigerator/Freezer & Microwave
E  Vanity
F  Wardrobe

G  Bathroom
H  32″ x 32″ Shower
I  Queen Murphy Bed


Capacity / Weight / Dimensions

  • Sleeps up to 3
  • Dual-Axle Trailer Chassis: 24′ L x 8.5′ W x 11′-8″ H
  • Hitch Weight: 1100 lbs.*
  • GVWR (Maximum Trailer Capacity): 14,000 lbs.
  • Unit Dry Weight: 12,800 lbs.*
  • Carrying Capacity: 1,200 lbs.*

* Weight subject to change based on specifications

Structure & Exterior

  • Insulation: Closed cell spray (floor, walls and roof)
  • Maintenance-Free Black Corrugated Metal Siding
  • 5 Windows: Dual Pane, Tempered (3 operable, 2 fixed angled)
  • 6′ x 7′ Sliding Patio Door
  • Entry Steps
  • (5) Stabilizer Jacks


  • Electrical Input: 50AMP
  • Tankless Hot Water Heater (Propane; RV-rated)
  • (1) RV Rooftop Heating & AC System (with wall-mounted controller)
  • Covered Propane Tanks: (2) 30 lbs mounted tanks
  • Standard RV Water & Sewer Connections (no holding tanks)


  • White-Washed Pine (walls & ceilings)
  • Roller Shades (light-filtering in living/kitchen, blackout in bedroom for privacy)
  • Custom, lined patio door curtain
  • 8’+ Ceilings throughout
  • LED Recessed Cove Lighting throughout (warm; dimmable)
  • Waterproof Luxury Vinyl Plank Flooring
  • Ample Standard Electrical Outlets and USB Ports throughout


  • Stainless Steel, Latching Refrigerator with Top Freezer (8.1 cu.ft.)
  • Built-In Convection Microwave with Air-Fry Option
  • 2 Burner Electric Cooktop
  • Dishwasher with Stainless Steel Door
  • White Solid Surface Countertops
  • Stainless Steel Kitchen Sink
  • Black Matte Kitchen Faucet with Pull-Out Spray
  • Custom Acrylic Lower Cabinets (incl. 5 push-latch drawers)*
  • Upper Open Shelving Nook (adjustable)*

* Dimensions & Finishes subject to minor changes


  • Built-In Banquette that Converts to a Twin Sleeper with Custom Sunbrella Cushions
  • Built-In Headboard Storage with Reading Light
  • 3 Large Overhead Storage Compartments
  • 1 Large Drawer under Banquette
  • Telescopic Table for dining or working
  • Outlet for TV Mount Above Banquette


  • 32” x 32” Walk-In Shower with Solid-Surface Wall Surrounds
  • Operable Privacy Window
  • Black Matte Modern Faucets & Shower Trim
  • 4-Setting Raincan Shower Head
  • Built-In Linen Shelving
  • Black Matte Towel Bars, Robe Hooks & Toilet Paper Holder
  • TOTO One-Piece, Elongated Toilet (1.28 GPF)
  • Bathroom Vent Fan
  • Solid Surface Vanity
  • Lighted Mirror/Medicine Cabinet
  • Built-in Wardrobe


  • Fold-Down Murphy Bed with Premium 9″ Firm Gel Memory Foam Mattress
  • (2) Built-In Bedside Closet/Table with Reading Lights
  • Barndoor for privacy
  • Standard Electrical Outlets & USB Ports
  • Egress Window
  • Recessed Cove Lighting


View the FAQs for more information or send us a message. We’re quick to respond.
